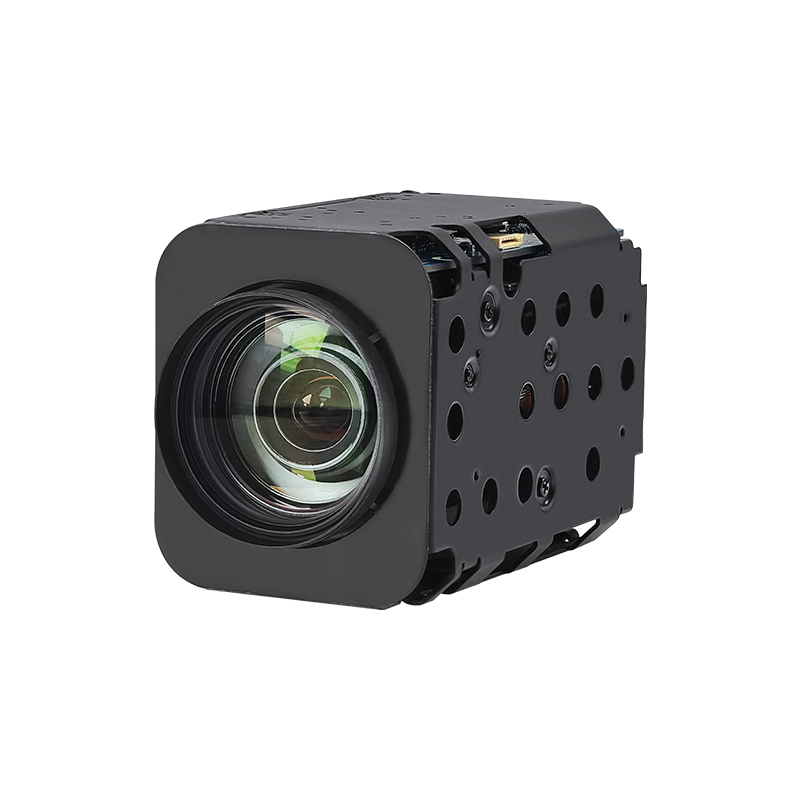

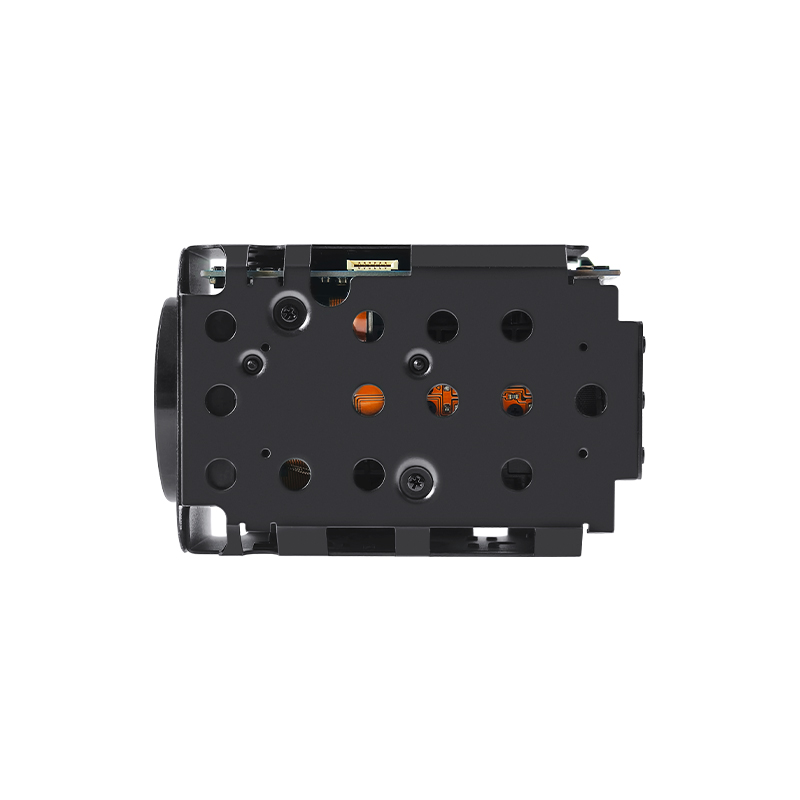

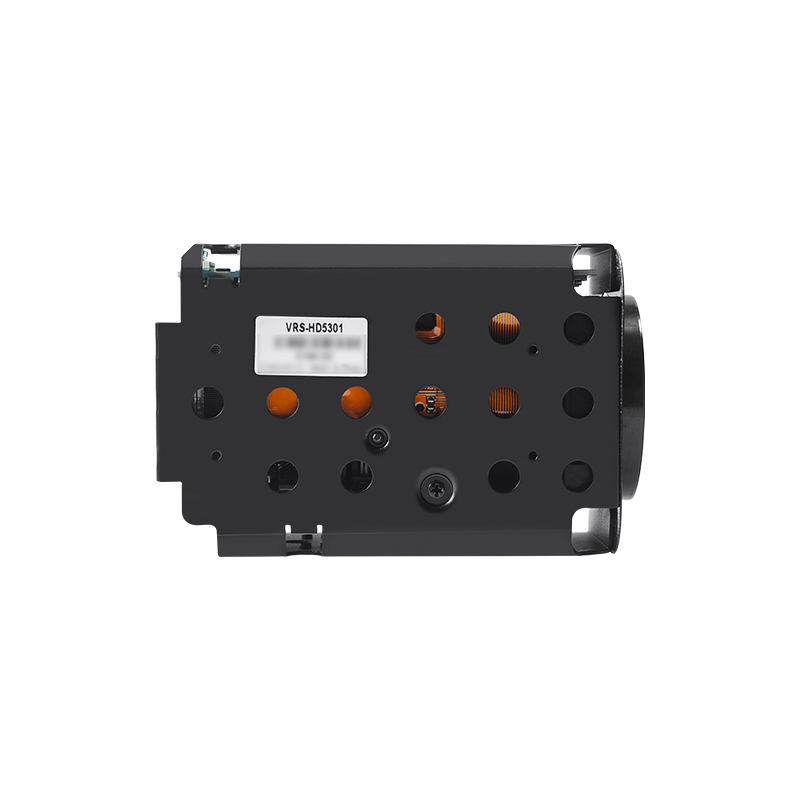

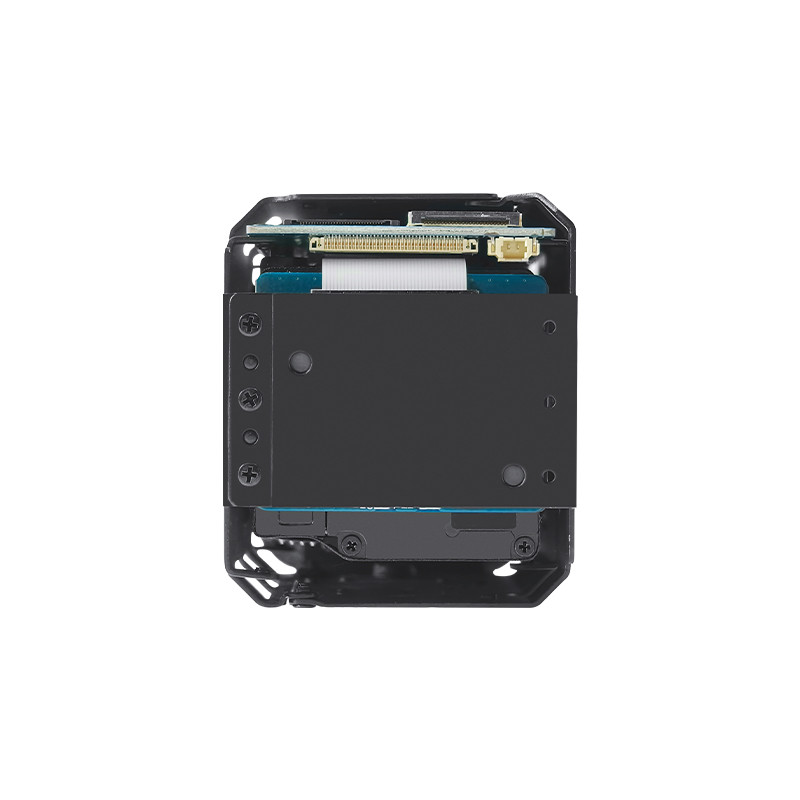

VRS-HD5301 camera module integrates advanced Wide Dynamic Range (WDR) technology. By intelligently optimizing the fusion ratio, it effectively prevents overexposure in bright areas and underexposure in dark zones — even in high-contrast lighting scenarios. The result is sharp, noise-free images that deliver exceptional clarity, ensuring reliable performance across all complex environments.
• 1/2.8" 2MP Sony CMOS sensor
• 1080p 60fps/30fps, 720p 60fps/30fps
• 30x Optical Zoom(4.6mm ~ 136mm) & 32x Digital Zoom
• Day & Night (ICR)
• Wide Dynamic Range
• Digital Noise Reduction (2D+3D)
• Privacy Mask Function
• Digital Image Stabilization
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : LVDS, EX-SDI, CVBS
Model NO. | VRS-HD5301 | Brand | Volers |
Sensor | 1/2.8" Sony Starvis CMOS Sensor | Output pixels | 1,945 (H) x 1,097 (V) = 2.13M Pixels |
Focal Length | 30x Optical Zoom, 32x Digital Zoom | Focal Length | f= 4.6 mm- 136 mm, F1.63 – 4.85 |
Image formats | Digital : 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps,720p/30(25)fps Analog : 700TVL | ||
Minimum illumination | Color(1/30s, 79.5dB) : 0.005 lux, BW(1/30s, 79.5dB) : 0.0008 lux Color DSS(1/8s, 79.5dB) : 0.00125 lux, BW DSS(1/8s, 79.5dB) : 0.0002 lux | ||
Video Output | HD : LVDS, EX-SDI Analog SD : CVBS (without WDR) | ||
Other functions | Digital Noise Reduction(2D+3D), Wide Dynamic Range, Day & Night(ICR), High Light Compensation | ||
Dimensions | 50(W) x 60(H) x 93(D)mm | ||
Weight | Approx 278g | ||
Drone inspectio
PTZ cameras
Medical Devices
VRS-HD5301 | Compatible Camera Interface Board | Customized Integrated Solutions | ||
1/2.8" Sony CMOS Sensor Effective pixels: approx. 2.12MP | + |
RJ45 Ethernet interface Network Video output | = |

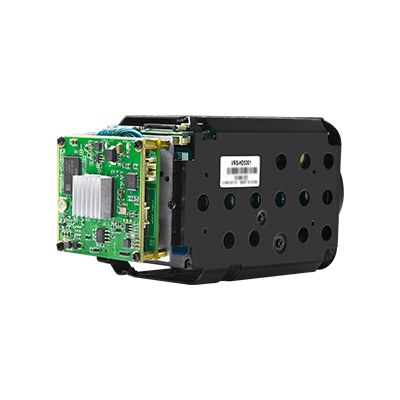

Volers VRS-HD5301 + MIPI or LVDS to IP camera Interface Board |
Lens: 20x Optical Zoom, 32x Digital Zoom | + |
Mini MCX RF Interface Lvds to 3G-SDI Output | = |

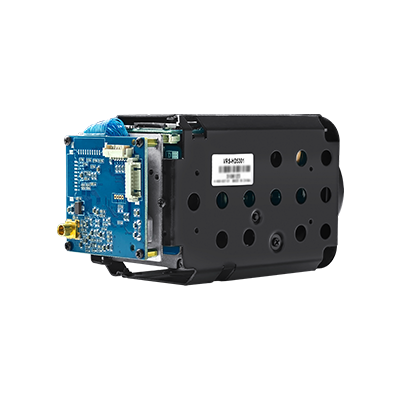

Volers VRS-HD5301 + 3G-SDII Interface Board |
Video Output: LVDS, EX-SD and CVBS Output pixels (H × V): 1937 x 1097 | + |

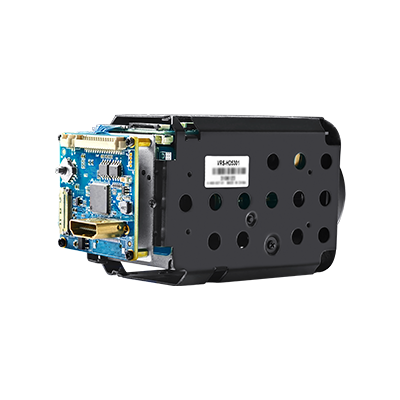

HDMI-compatible Type A interface HD-HDMI video output | = |
Volers VRS-HD5301 + HD-HDMI Compatible Interface Board |

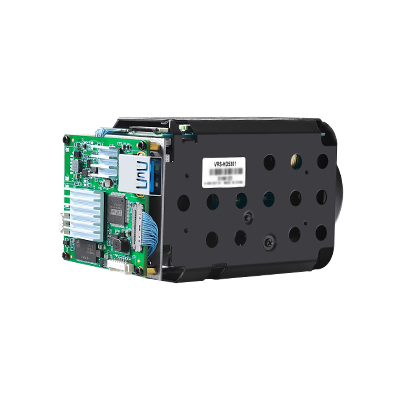

Minimum illumination: color image output under 0.01Lx low illuminations | + | ![]() USB3.0 Interface Lvds to USB3.0 video Output | = | ![]() Volers VRS-HD5301 + LVDS to USB3.0 Video Capture Interface Board |

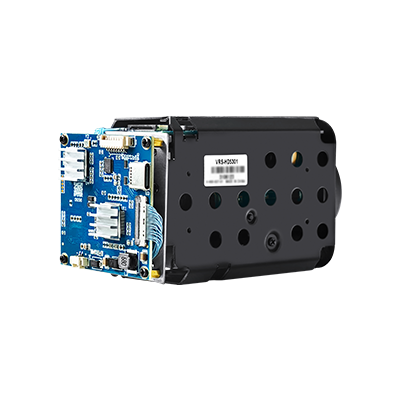

Wide dynamic, Electronic image stabilization | + | ![]() USB3.0 Type-C Interface Lvds to Type-C Output | = | ![]() Volers VRS-HD5301 + LVDS to USB3.0 Type-C Video Capture Interface Board |
Day and night switch Privacy Mask Function | + |
Two BNC Female and HDMI Compatible Type-A Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output | = |

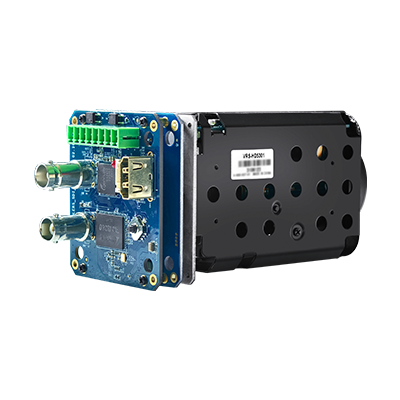

Volers VRS-HD5301 + SDI/CVBS/HDMI-Compatible 3-in-1 Multi-functional Interface Board |
Compact and Lightweight Body Camera control: VISCA, Pelco-D/P | + |

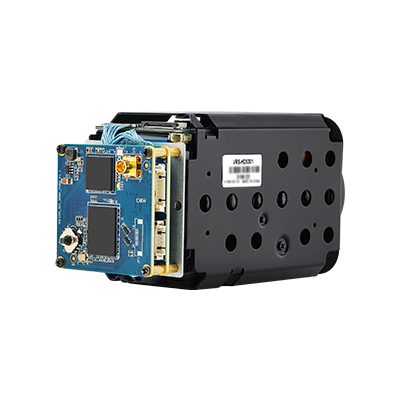

LVDS socket and MCX female Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output | = |
Volers VRS-HD5301 + Mini SDI/CVBS/HDMI-Compatible Interface Board |
Size: 50(W) x 60(H) x 97(D)mm Weight: Approx 232g | + |

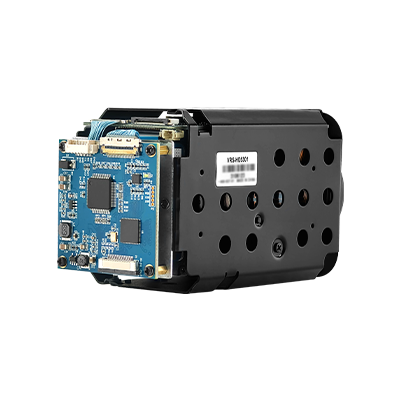

LVDS Socket and FPC Interface MIPI CSI-2 Version 1.00 output | = |
Volers VRS-HD5301 + LVDS to MIPI Interface Board |
FAQ
Q1: Can the VRS-HD5301 connect to an MIPI or LVDS to IP Camera Interface Board for image output?
A1: Absolutely.
The VRS-HD5301 and the MIPI or LVDS to IP Camera Interface Board both support the Sony VISCA protocol. Designed with dual MIPI and LVDS interfaces (note: the two interfaces cannot be used simultaneously, only one can be activated at a time), this interface board is compatible with MIPI interface camera modules (e.g., Sony FCB-EV9500M) as well as LVDS interface camera modules. Since the VRS-HD5301 features LVDS interface output, seamless connection and stable image output between the two devices are fully achievable.
Q2: Why does the VRS-HD5301 experience center shift? Some shifts are minor, while others are larger.
A2: We have conducted specialized testing on the issue you reported. The center shift is caused by optical axis consistency. The VRS-HD5301 is not optimized with this correction function and stems from the manufacturing precision of the optical lens.
During the production process, even for products from the same batch, variations exist due to differences in lens processing and assembly. This is not a product quality defect and complies with the factory quality standards.
If you require this function in your application, we recommend choosing the Sony FCB-EV9520L, which is equipped with an optical axis calibration function. Enabling this function effectively resolves center alignment issues. Please contact us to request a sample for testing.
Q3: Does the VRS-HD5301 have excessive noise during nighttime use? Are there effective adjustment methods?
A3: You can adjust the VRS-HD5301 by reducing the sharpness and increasing the 3D noise reduction setting. This adjustment will improve low-light performance, though it may introduce slight smearing artifacts.
If the result remains unsatisfactory, please contact our technical engineers for further professional support.
Q4: How to save and view images and videos from the VRS-HD5301?
A4: The VRS-HD5301 does not have a built-in snapshot function or internal memory, so it cannot save images or videos locally.
To save and view images and videos, you must store them on a video recorder or a computer equipped with a video capture card. You can capture a still image using the camera’s freeze frame function or take a snapshot from the video stream.
Q5: How to Connect the VRS-HD5301 to the HD-HDMI Compatible Interface Board for Video Output
A5:
I. Materials Required
1. VRS-HD5301
2. HD-HDMI Compatible Interface Board
3. 16-pin main transmission cable
4. LVDS cable
5. HDMI-Compatible cable
6. DC 12V power supply and 2-pin power cable
7. Monitor or TV supporting HDMI output
II. Connection Steps
1. Connect the LVDS cable to the VRS-HD5301
With the gold fingers facing up, push the LVDS cable straight and parallel into the LVDS connector of the VRS-HD5301 zoom camera. Both ends of the cable must be parallel to the connector, and no gold fingers should be exposed.
2. Connect the LVDS cable to the HD-HDMI Compatible Interface Board
Connect the other end of the LVDS cable to the HD-HDMI Compatible Interface Board. The method and precautions are the same as in Step 1.
3. Connect the HDMI-Compatible cable to the HD-HDMI Compatible Interface Board
Connect the prepared HDMI-Compatible cable to the monitor and the HD-HDMI Compatible Interface Board respectively.
4. Connect power to the HD-HDMI Compatible Interface Board
Connect the DC 12V 1A power cable to the HD-HDMI Compatible Interface Board. After connection, wait a moment for the signal to appear. Note: the power supply voltage must not exceed 12V, otherwise the control board may be damaged; the current must be above 1A.
5. Test whether control works
You can operate the five-way button on the HD-HDMI Compatible Interface Board. Long press for 5 seconds to bring up the menu, then use the five directions—up, down, left, right, and center—to control the menu of the VRS-HD5301 zoom camera, so as to realize button-based control of the VRS-HD5301 camera core.
Model | VRS-HD5301 | |||
Image Sensor | 1/2.8" Sony CMOS Sensor | |||
Total Pixels | 1,945 (H) x 1,109 (V) = 2.16M Pixels | |||
Active pixels | 1,945 (H) x 1,097 (V) = 2.13M Pixels | |||
Scanning system | Progressive Scan | |||
Sync. System | Internal | |||
Resolution | Digital : 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 Analog : 700TVL | |||
Min. illumination | Color(1/30s, 79.5dB) : 0.005 lux, BW(1/30s, 79.5dB) : 0.0008 lux Color DSS(1/8s, 79.5dB) : 0.00125 lux , BW DSS(1/8s, 79.5dB) : 0.0002 lux | |||
Video Output | HD : LVDS, EX-SDI Analog SD : CVBS(without WDR) | |||
S/N Ratio | more than 50dB (AGC off) | |||
Lens | ||||
Lens type | 30x Day & Night Zoom Lens | |||
Zoom Ratio | ||||
Focal Length | f = 4.6mm ~ 136mm | |||
Aperture Ratio | F1.63 (wide) ~ F4.85 (tele) | |||
Angle of View (D, H, V) | Wide | 73.3°(±5%) | 65.4°(±5%) | 38.3°(±5%) |
Tele | 2.6°(±5%) | 2.2°(±5%) | 1.3°(±5%) | |
Function | ||||
AF Mode | Auto / One Push / Manual | |||
Min. Distance | 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m | |||
Lens Refresh | One Push / 1 ~ 10Day | |||
Digital Zoom | Off / MAX 2x ~ 32x | |||
Exposure | Auto / Iris.P / Shut.P / Manual | |||
Gain Control (AGC) | Off / On | |||
Shutter Speed | 1/30(25) ~ 1/30,000 sec | |||
Iris | 0 ~ 20 steps | |||
Digital Slow Shutter (DSS) | Off / 2x / 4x ( 8x : 60 or 50 fps mode only) | |||
Brightness | 0 ~ 20 steps | |||
WDR/BLC | OFF / WDR / BLC | |||
Day&Night | Auto / Day / Night / Ext-in | |||
White Balance | Auto / One Push / Manual / Indoor / Outdoor | |||
HLC | Off / On / Night Only | |||
DNR | Auto / Off / Low / Middle / High | |||
Mirror | Off / H / V / H&V | |||
Sharpness | 0 ~ 10 steps | |||
ACE | Off / Low / Middle / High / User | |||
Defog | Off / On(Auto / Manual) | |||
Privacy Mask | Max. 24 Areas | |||
Motion Detection | Max. 3 Areas | |||
Defect Detection | Off / On | |||
System | NTSC / PAL | |||
Communication | Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P / Update | |||
Language | English / Simplified Chinese / Traditional Chinese / Japanese | |||
Power Source | 9V to 15V DC | |||
Power Consumption | 500mA | |||
Operating Temperature | -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH) | |||
StorageTemperature | -10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH) | |||
External Dimension | 50(W) x 60(H) x 93(D) | |||
Weight | Approx 278g | |||
