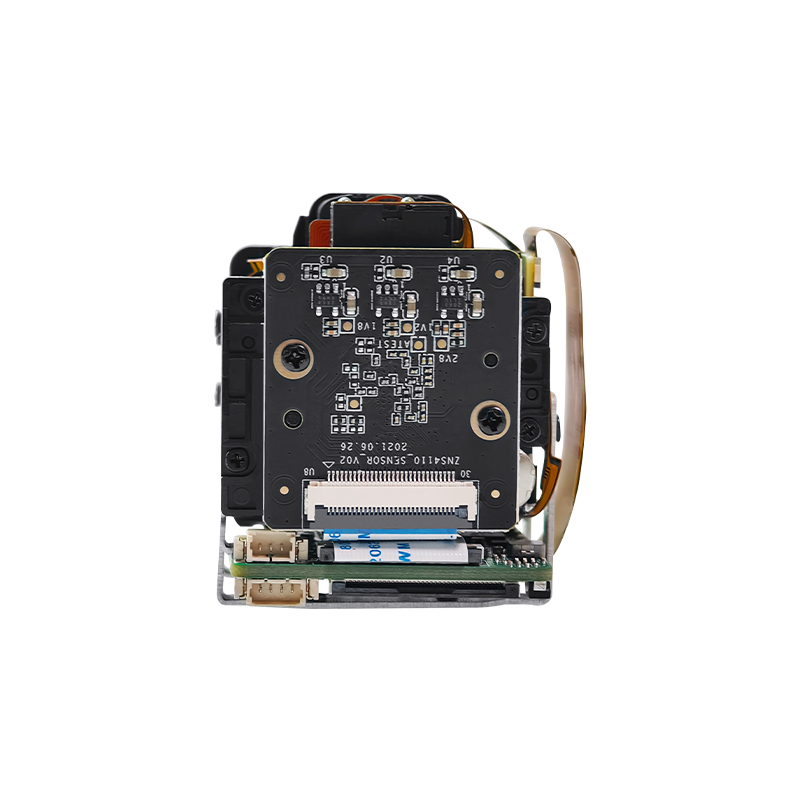

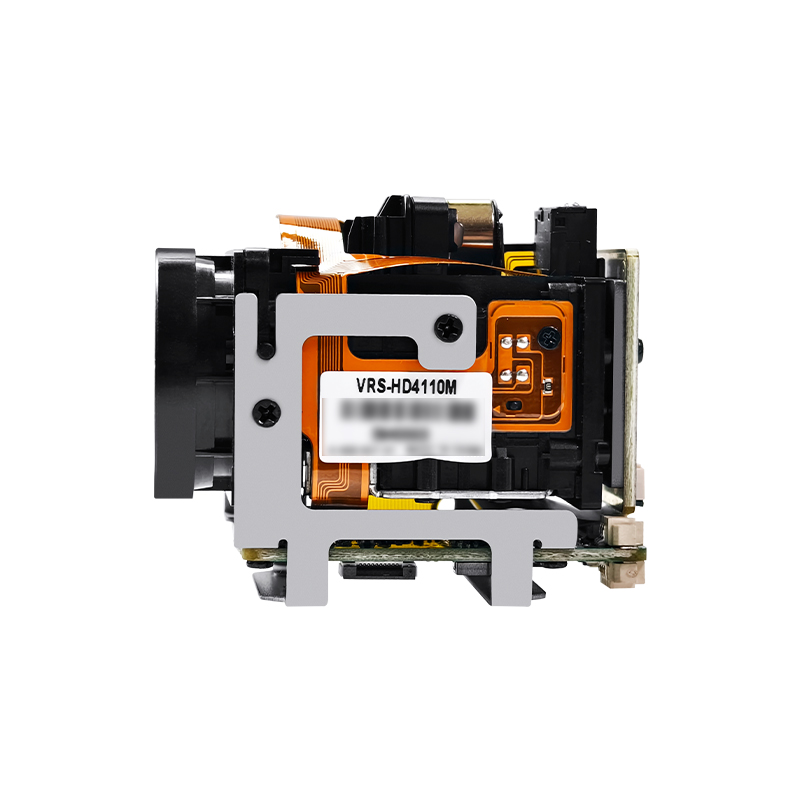

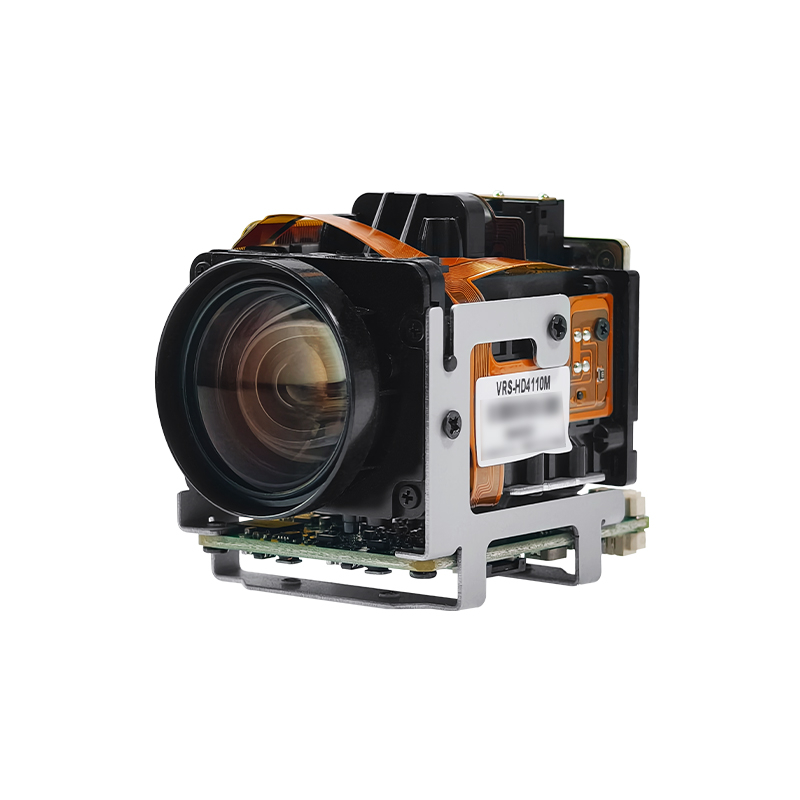

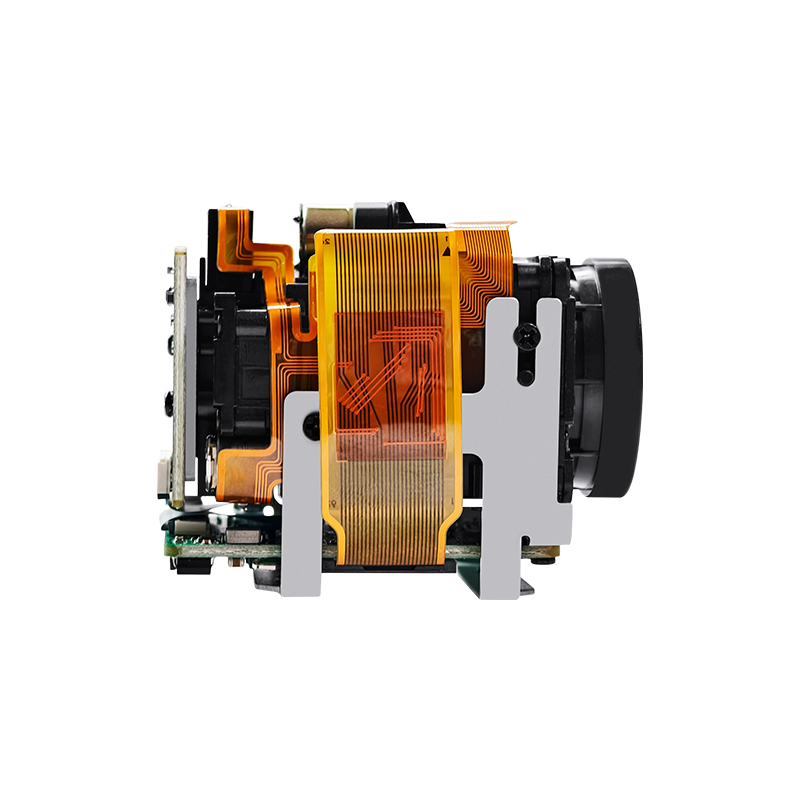

VRS-HD4110 Volers 4MP starlight high-definition 10x Zoom Network Camera

• Sensor(Effective pixels): 1/2.8" Progressive Scan CMOS(4 mega pixels)
• Output pixel(HxV): 2560x1440 , 1920×1080, 1280×720
• Video format: 1440P/30/25, 1080P/30/25, 720P/30/25
• Video output: Network
• Lens: f = 4.8mm - 48mm, F1.7 - 3.1
• Zoom: 10x Optical Zoom, 16x Digital Zoom
• Other functions: H.265/H.264 video compression algorithm, three-stream technology, 120dB optical wide dynamic range, scheduled snapshot and event snapshot, Micro SD/SDHC/SDXC card storage up to 256G, Support ONVIF, GB/T28181 access.
• Size: 62.7*50.8*43.8mm (shell solution), 61.7*42.4*50.3 (bracket solution)
• Weight: approx. 160g (shell solution), 100g (bracket solution)

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

VRS-HD4110 Volers VRS-HD4110 10x Zoom Block Camera 4MP Block Camera 4MP Network Camera Module starlight high-definition Camera 10x Zoom Network Camera Network Output Block Camera

Overview

The VRS-HD4110 adopts a Sony 1/2.8” Progressive Scan CMOS Sensor, it supports Network video signal output, Mainly applicable to the development or integration of dome cameras and PTZ.

Features

• The maximum resolution can reach 4 mega pixels ( 2560 * 1440 ), and the maximum output of full HD

2560 × 1440 @30fps real-time images.

• Support H.265/H.264 video compression algorithm, support multi-level video quality configuration and coding

complexity setting.

• Starlight level ultra-low illumination, 0.0 01 Lux/F1.7 (color), 0.0 005 Lux/F1.7 (black and white), 0 Lux with IR.

• Supports 10x optical zoom and 16x digital zoom.

• Support basic detection functions such as motion detection.

• Supports three-stream technology, each stream can be independently configured with resolution and frame rate.

• ICR infrared filter type automatic switching to achieve true day and night monitoring.

• Supports backlight compensation, automatic electronic shutter and other functions to adapt to different monitoring environments.

• Supports 3D digital noise reduction, strong light suppression , 120dB optical wide dynamic range.

• Supports 255 preset positions and 8 cruise scans.

• Supports scheduled snapshot and event snapshot functions.

• Supports one-key watch and one-key cruise functions.

• Support 1 audio input and 1 audio output.

• Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function.

• Supports Micro SD/SDHC/SDXC card storage up to 256G.

• Support ONVIF, GB/T28181 access.

• Rich interfaces for easy function expansion.

• Small size, low power consumption, easy to connect to dome cameras and gimbals.

Basic Info.

Model NO.	VRS-HD4110	Brand	Volers
Sensor	1/2.8" CMOS Sensor	Effective Pixels	2560 x 1440 (FHD)= 3.68M pixels
Focal Length	10x Optical Zoom, 16x Digital Zoom	Focal Length	f= 4.8 mm- 48 mm, F1.7 – 3.1
Image formats	50Hz: 25fps (25601440 , 1920 × 1080, 1280 × 720); 60Hz: 30fps (25601440 , 1920 × 1080, 1280 × 720)
Minimum illumination	Color : 0.0 0 1 Lux @ (F1.7, AGC ON); Black and white : 0.00 05 Lux @ (F1.7, AGC ON)
Video Output	Network
Other functions	H.265/H.264 video compression algorithm, three-stream technology, 120dB optical wide dynamic range, scheduled snapshot and event snapshot, Micro SD/SDHC/SDXC card storage up to 256G, Support ONVIF, GB/T28181 access.
Dimensions	62.750.843.8mm (shell solution), 61.742.450.3 (bracket solution)
Weight	Approx 160g (shell solution), 100g (bracket solution)

Application

Easy to connect to dome cameras and gimbals

Optimized Video Output Configuration

VRS-HD4110

Compatible Camera Interface Board

Customized Integrated Solutions

10x Optical Zoom

Video Out : Network

+

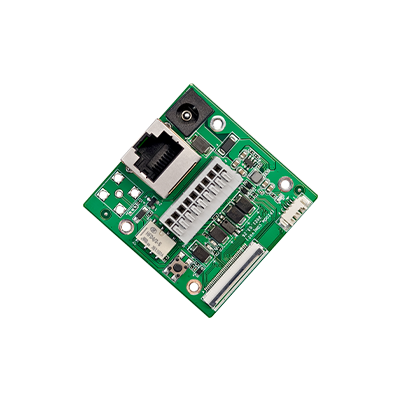

专用控制板

Special interface board

=

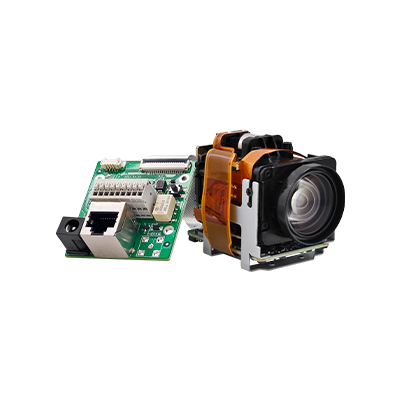

预安装效果图

Volers VRS-HD4110 + Special interface board

FAQ

Q1: Does VRS-HD4110 support synchronous trigger signal?

A1: Does not support synchronous triggering

Parameter

Camera parameters
Model	VRS-HD4110
Image Sensor	1/2.8" CMOS Sensor
Scanning system	Progressive Scan
Sync. System	Internal
Minimum illumination	Color : 0.0 0 1 Lux @ (F1.7, AGC ON); Black and white : 0.00 05 Lux @ (F1.7, AGC ON)
Electronic	1/25 sec to 1/100,000 sec; supports slow shutter
Auto iris	DC drive
Electronic	1/25 sec to 1/100,000 sec; supports slow shutter
Day and night	Automatic ICR infrared filter type
Lens parameters
Lens type	10x Day & Night Zoom Lens
Zoom Ratio	Optical 10x, Digital 16x Zoom
Focal Length	f = 4.8mm ~ 48mm
Aperture Ratio	F1.7 (wide) ~ F3.1 (tele)
Horizontal	62-7.6 degrees (wide angle-telephoto)
Close range	1000mm-2000mm (Wide angle-telephoto)
Zoom speed	About 3.5 seconds (optical, wide-angle-telephoto)
Compression standard
Video	H.265/H.264
H.265 encoding	Main Profile
H.264 encoding	BaseLine Profile / Main Profile / High Profile
Video	32Kbps~16Mbps
Audio	G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
Audio compression bit	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
*Image parameters ( maximum image size: 25601440 )**
Main stream resolution	50Hz: 25fps (25601440 , 1920 × 1080, 1280 × 720); 60Hz: 30fps (25601440 , 1920 × 1080, 1280 × 720)
Third stream resolution and frame rate	Independent of the main stream setting, the highest supported: 50Hz: 25fps ( 704 * 576 ); 60Hz: 30fps ( 704 * 576 )
Image settings	Saturation , brightness , contrast , and sharpness are adjustable through the client or browser
BLC	Support , customizable area
Exposure mode	Auto exposure/aperture priority/shutter priority/manual
Focus mode	Auto focus/one time focus/manual focus/semi-automatic focus
Area	support
Through fog	support
Day and night	Automatic , manual , timing , alarm trigger
3D noise	support
Picture overlay	Support BMP 24 -bit image overlay , customizable area
Area of	ROI supports setting 4 fixed areas for three streams respectively
Internet function
Storage function	Supports Micro SD/SDHC/SDXC card ( 256 G) offline local storage , NAS (NFS, SMB/CIFS are supported
Supporting	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6
Interface Protocol	ONVIF (PROFILE S, PROFILE G), GB28181-2016, domestic mainstream manufacturer agreement
Interface parameters
External Interface	36pin FFC ( including network port, RS485 , RS232 , SDHC , Alarm In/Out , Line In/Out , power supply )
General specifications
Operating	-30 ℃ ~ 60 ℃ , humidity less than 95% ( no condensation )
Power supply	DC12V± 10 %
Power	2.5W static ( 4W MAX)
Working current	120 mA
Size	62.750.843.8mm (shell solution), 61.742.450.3 (bracket solution)
Weight	160g (shell solution), 100g (bracket solution)

* Our company will try its best to provide standard and comprehensive information, but will not be responsible for errors or omissions in the information. Product pictures are for reference only,

the actual product shall prevail.

Video

Download

RELATED ACCESSORIES

Image	Product Name
	VRS-HD5365 Volers Global Shuttler 36X Zoom Block Camera

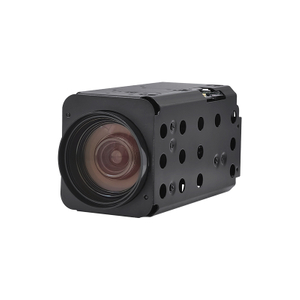

	VRS-HD5363 Volers EX-SDI 36X AF-Zoom Block Camera

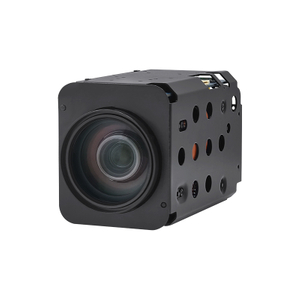

	VRS-HD5401 Volers 40X Zoom Block Camera LVDS Output

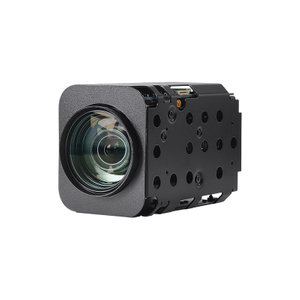

	VRS-HD5300 Volers CCTV CVBS 30X Zoom Block Camera

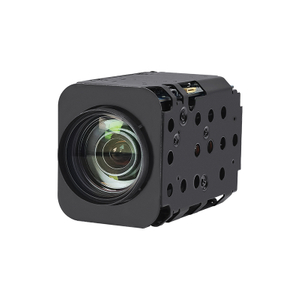

	VRS-HD5301 Volers 2MP Lvds Output 30X Zoom Camera

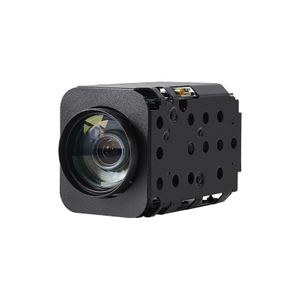

	VRS-HD5200 Volers CVBS 20x Zoom Block Camera

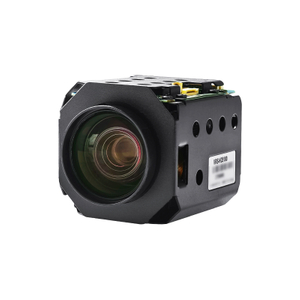

	VRS-HD5100 Volers 1080P Full HD Zoom Block Camera

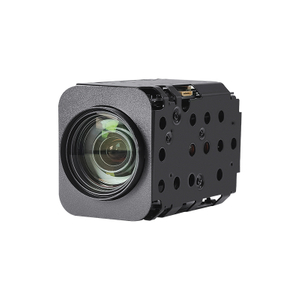

	VRS-HD5201 Volers 20X Zoom Block Camera
