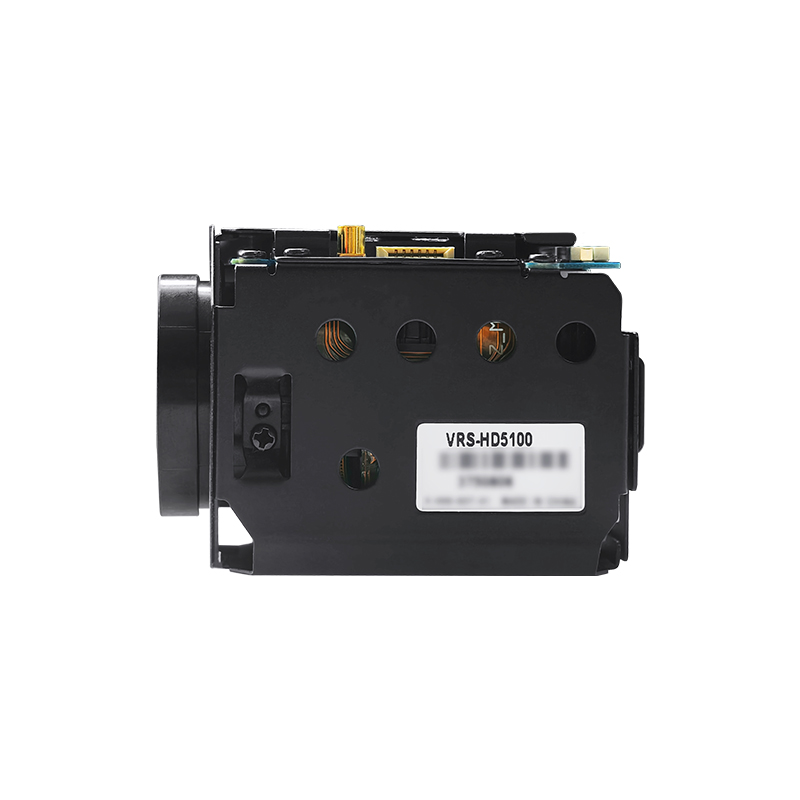

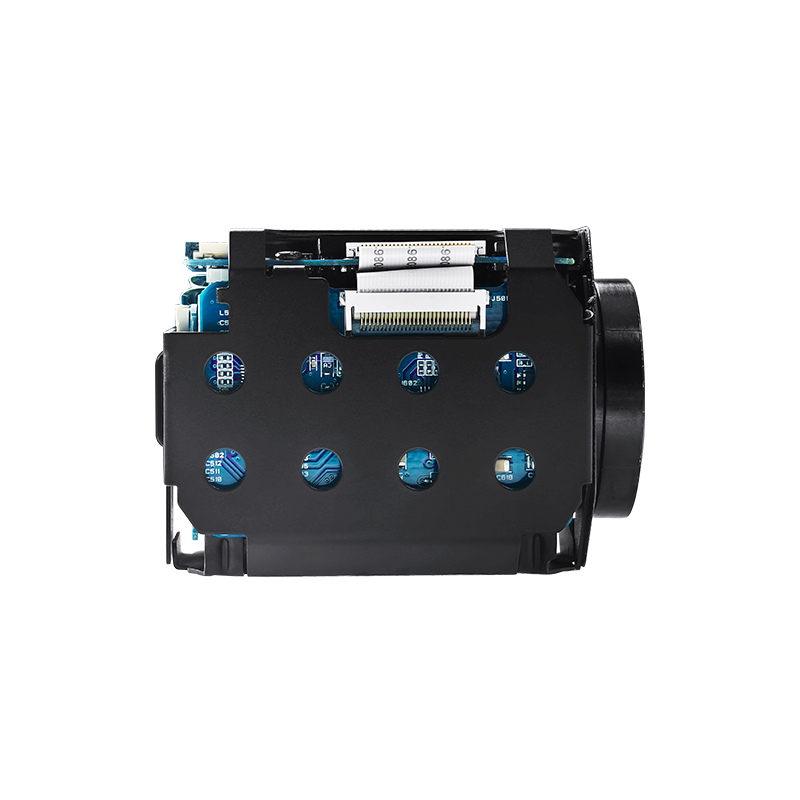

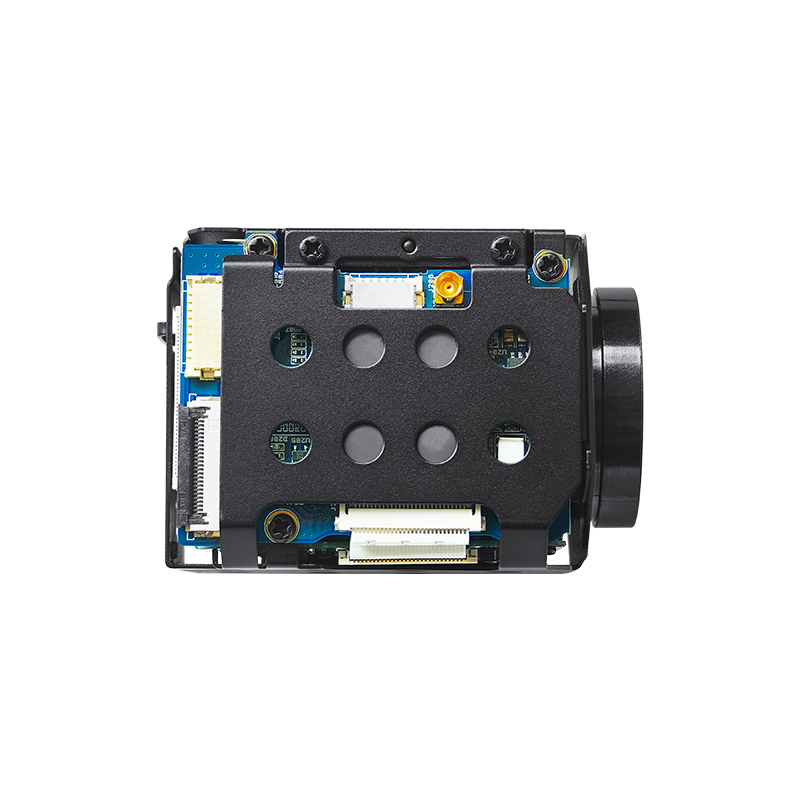

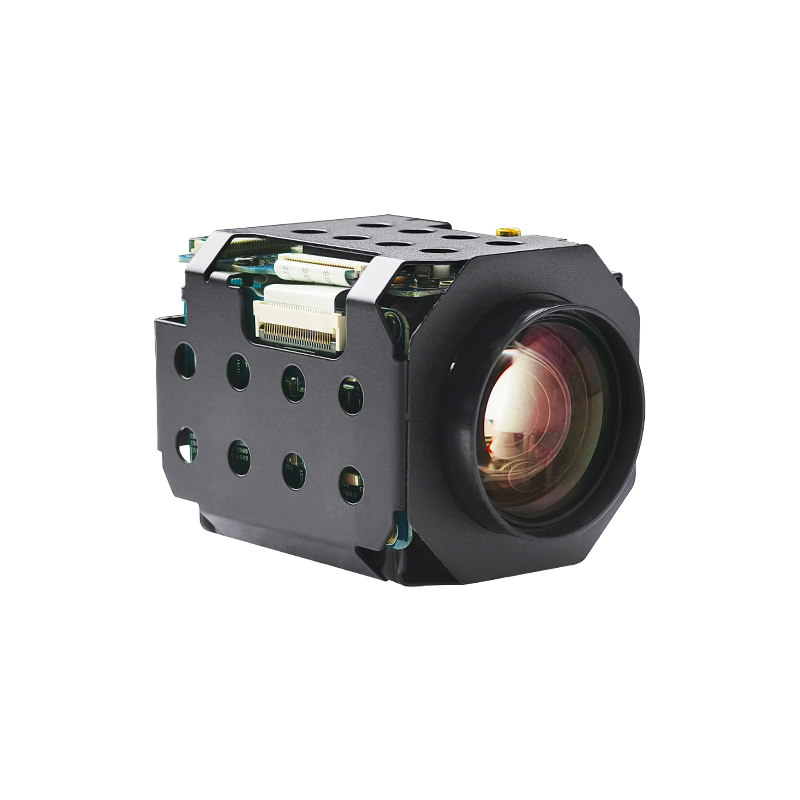

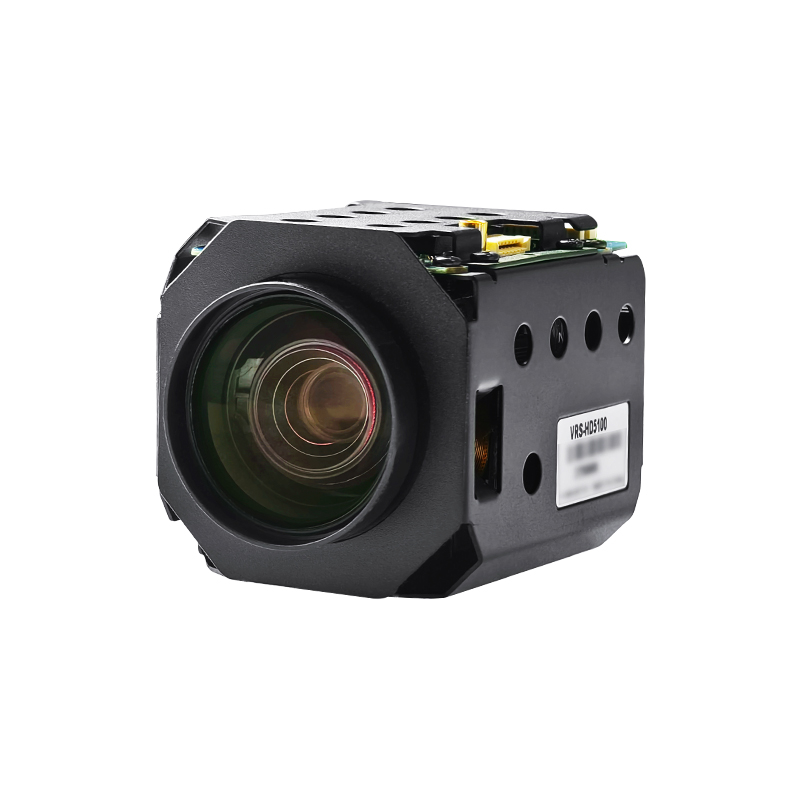

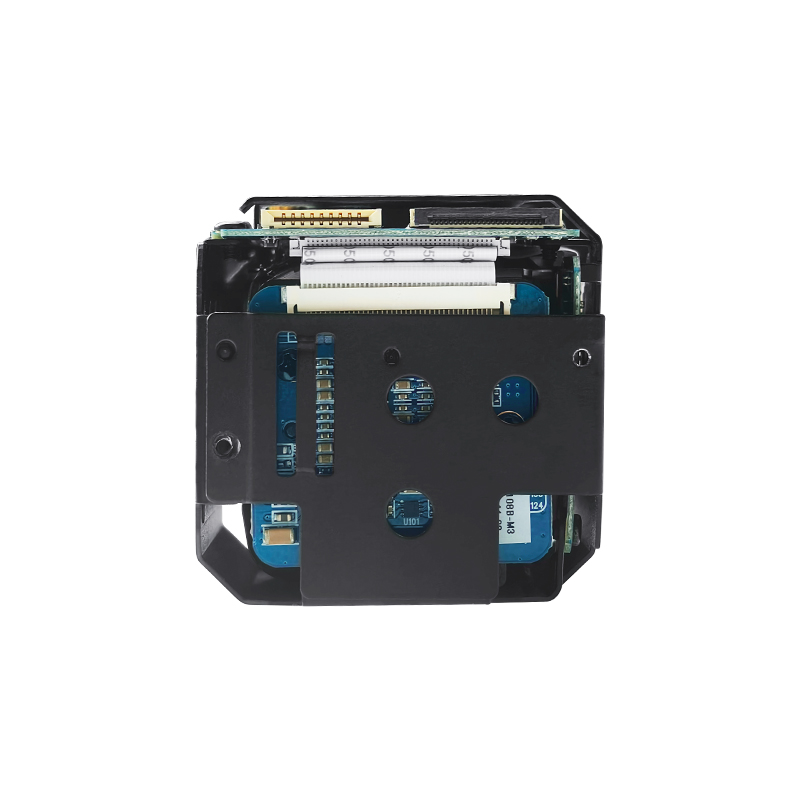

The VRS-HD5100 adopts a Sony 1/2.8" CMOS Sensor, In terms of output methods, it supports both digital and analog modes, flexibly meeting the needs of different devices. The digital output includes formats such as HD-TVI and HD-SDI, while the analog output supports NTSC and PAL composite formats. It enables seamless connection with various devices, allowing easy integration with both professional security systems and other image acquisi-tion devices.
• 1/2.8" 2MP Sony CMOS Sensor
• 1080p 60fps/30fps, 720p 60fps/30fps
• 10x Optical Zoom (5.1~51mm) & 32x Digital Zoom
• Day & Night (ICR)
• Wide Dynamic Range
• Digital Noise Reduction (2D+3D)
• Privacy Mask Function
• Digital Image Stabilization
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : HD-TVI, HD-SDI, EX-SDI, CVBS
Model NO. | VRS-HD5100 | Brand | Volers |
Sensor | 1/2.8" Sony Starvis CMOS Sensor | Effective Pixels | 1945 x 1097 (FHD)= 2.13M pixels |
Focal Length | 10x Optical Zoom, 32x Digital Zoom | Focal Length | f= 5.1 mm- 51 mm, F1.6 – 1.8 |
Image formats | Digital : 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps,720p/30(25)fps Analog : 700TVL | ||
Minimum illumination | Color(1/30s, 60dB) : 0.003 lux, BW(1/30s, 60dB) : 0.0004 lux Color DSS(1/8s, 60dB) : 0.00075 lux , BW DSS(1/8s, 60dB) : 0.0001 lux | ||
Video Output | HD : HD-TVI, HD-SDI, EX-SDI,Analog SD : CVBS | ||
Other functions | Digital Image Stabilization, Intelligent Motion Detection, Defog Function, High Light Compensation | ||
Dimensions | 43(W) x 44(H) x 61(D) | ||
Weight | Approx 118g | ||
Industrial testing
Automatic drive
Robot
VRS-HD5100 | Compatible Camera Interface Board | Customized Integrated Solutions | ||
10x Optical Zoom Video Out : HD-TVI, HD-SDI, EX-SDI, CVBS | + |

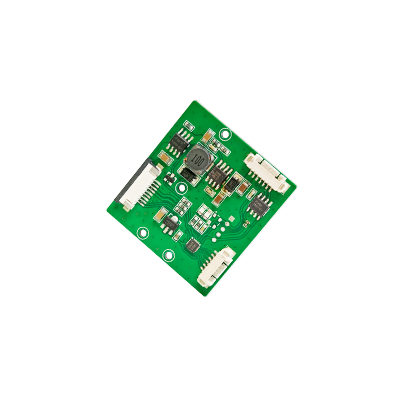

Special interface board | = |

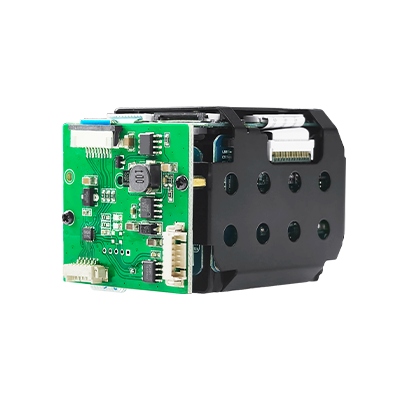

Volers VRS-HD5100 + Special interface board |
Q1: What are the differences between the VRS-HD5100 and VRS-HD5101?
A1: The VRS-HD5101 supports the LVDS interface and can be paired with a variety of self-developed HD interface boards from our company to output HD video signals, whereas the VRS-HD5100 is only compatible with professional control boards.
Q2: What are the main application scenarios of the 10x zoom VRS-HD5100 in the robotics field?
A2: The 10x zoom VRS-HD5100 is widely applied in robotics for pipeline inspection, drone monitoring, security patrolling, medical endoscopy, and scientific research exploration. Its core strengths lie in meeting dynamic capture demands in complex environments with its optical zoom capability and compact design. Below is a detailed analysis of its specific application scenarios and technical adaptability:
1. Remote Inspection and Detection Robots
Industrial equipment inspection: In power, energy, chemical and other industries, robots integrated with the VRS-HD5100 can clearly capture fine details from a distance, such as instrument readings, equipment surface corrosion and pipeline leaks, eliminating the need for personnel to access high-risk environments.Infrastructure inspection: For bridges, tunnels, wind turbine blades and other scenarios, the VRS-HD5100 zooms in to observe tiny defects like cracks and deformations, enabling visual diagnosis with millimeter-level precision.
2. Security Patrol and Emergency Response Robots
In industrial parks, warehouses and other settings, robots equipped with the VRS-HD5100 flexibly switch between wide-angle monitoring and close-up observation via zoom, identifying suspicious persons, license plates or objects at medium and long distances to expand the monitoring range of a single device.
3. Special Operations and Collaborative Robots
Precision teleoperation: In nuclear industry, high-altitude operations and other scenarios, paired with robotic arms, operators can clearly view operational details (e.g., welding points, screw positions) through the zoomed images of the VRS-HD5100, achieving precise remote control.
4. Visual Enhancement for Autonomous Mobile Robots (AMRs)
Dynamic environmental perception: In logistics, warehousing and other scenarios, AMRs use the VRS-HD5100 to identify distant shelf labels and cargo status, pre-plan paths or tasks, and improve operational autonomy.
